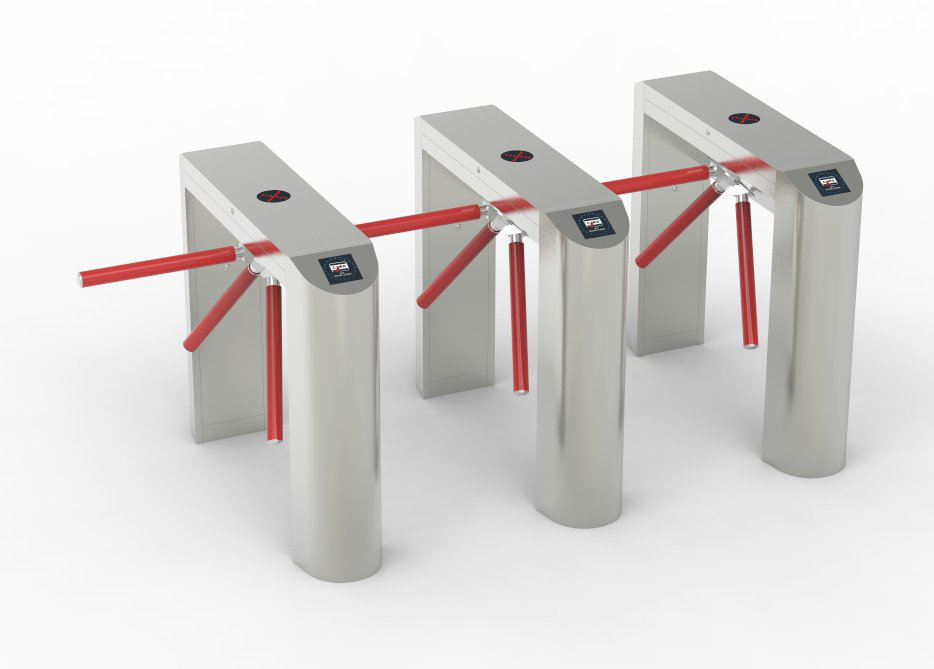

Semi-Automatic Tripod Turnstile VD.TD.6371X

Spesifikasi Semi-Automatic Tripod Turnstile VD.TD.6371X

• Stainless Steel Arm Turnstile Tripod RS485 600mm Passage Width
•

Product Parameter:

Structure Parameter

1. Material: SUS304 brushed stainless steel
2. Top cover 2.0mm, whole body 1.5mm
3. Arm: stainless steel
4. Size: L1600*W280*H1000mm

Technical Parameter

1. Passage Width: 550mm
2. Passing Speed: 30-45 personal/min
3. Opening Speed: 1s
4. Working Temperature: -25℃-+70℃
5. Mean Cycles Between Failure: 5 million times
6. IP Rating: IP42

Electric Parameter

1. Voltage: AC110V/AC220V±10% 50-60Hz
2. Operating Power: 40w
3. Driving Motor: DC24V brushless motor
4. Method of Position: motor driving
5. Communication Interface: RS485
6. Input Signal: dry contact
7. Pagar Barrier
