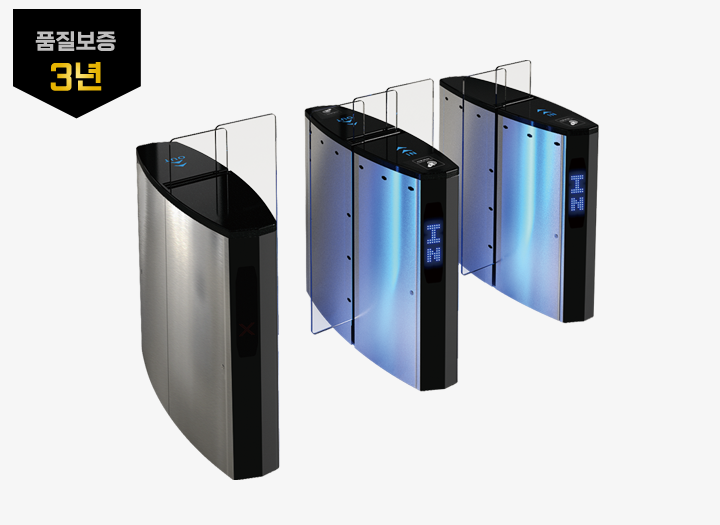

NS-1000 (Normal/Luggage/Large) NETWORK SECURITY GATE

Rp. 123
Update Terakhir
24 Mar 2023
Negara Asal
Korea South
Pembelian Min
1 Call.08129396152
Subkategori
NS Gate

Spesifikasi NS-1000 (Normal/Luggage/Large) NETWORK SECURITY GATE




NS-1000 (Normal/Luggage/Large)


NETWORK SECURITY GATE

Specification

Materials used Steel, stainless steel 304, aluminum (optional), fingerprint protection door (optional)
Motherboard
32bit / Memory 256bit / RAM 64Kbit
Safety function
Speed control of the drive, motor torque control function Step 1 to 10, fire safety evacuation guide voice guide
Passage speed
Maximum number of people between 40 and 60/min
External environment
-15°C to 60°C / Humidity
Voice support
customizing features
Motor
AC 100W, 200W / AC Servo 100W, 200W / BLDC 100W, 200W
Certification/patent
KC/CE, 4-column link drive
Power
220–230 V / 50–60 HZ
Glass door 12mm thickness of safety glass, 1000mm height adjustable


Main functions


  • Part failures: Faults displayed by part (displayed in the self-diagnosis function LCD window)
  • Special function: Automatic opening and recovery of voice guidance / fire fighting siren doors in conjunction with fire alarm
  • Entry, exit: One-way / Two-way / Authentication / Unauthenticated Mode Support
  • Closing/Opening speed adjustment function: Very slow/slow/normal/fast/very fast (step 5)
  • Option installation: Manual control
    board / Wireless remote controller / Voice guide / Face recognizer /
    Fire fighting manual control board / Installable
  • Access status: Built-in counter (10 million times)
  • Application of Internet of Things
    technology: Products considered for future scalability with possible
    platform design Remote Monitoring, Control (TCP)
  • Manual operation team: efficient access management of visitors and access management of visitors
  • Automatic sensor: Automatically open the door when detecting an object with the installation of Article 9-22 (safety function)
  • Durability: Excellent (Core parts precision processing)

* A/S 3-year warranty service, Korea's first motor free warranty service
